| 6’’ DEWATERING PUMP | 4’’ DEWATERING PUMP | |
|---|---|---|
| Performance | Max flow 90 L/S per sec (324 m 3/h) | Max flow 45.0 L/S per sec (162m 3/h) |
| Maximum discharge head | 42 mtr. (138 ft) | 31 mtr. (138 ft) |
| Maximum particle size | 55mm (2 inch) | 44mm |
| Fuel tank | 150 ltr | 150 ltr |
| Engine | HA 394 kirloskar engine, air cooled, self started. |
HA294 kirloskar engine, air cooled, self started. |
| RPM (kw) | 1500- (23.6 kw) , 2300 – (34.6 kw) , HP 32.80 to 48.00 |
1500- (23.6 kw) , 1800 – (28 kw) , HP 32.80 to 28.90 |
| Priming system | Rotary vacuum pump : 60 CFM A – type |
Rotary vaccum pump: 25 CFM A - type |
| Construction of priming tank | Aluminium (gravity casting) | Aluminium (gravity casting) |
| Dimension | L x W x H (2350 x 1500 x 1630 ) | L x W x H (1800 x 1270 x 1230) |
| Weight | 1180 kg | 860 kg |
Application : construction industry,industries,communities delivery of ground water and dewatering.
Operation : water and air pump,driven by diesel engine,air seperation chambel will automatically separate air from suction line and discharge only water.

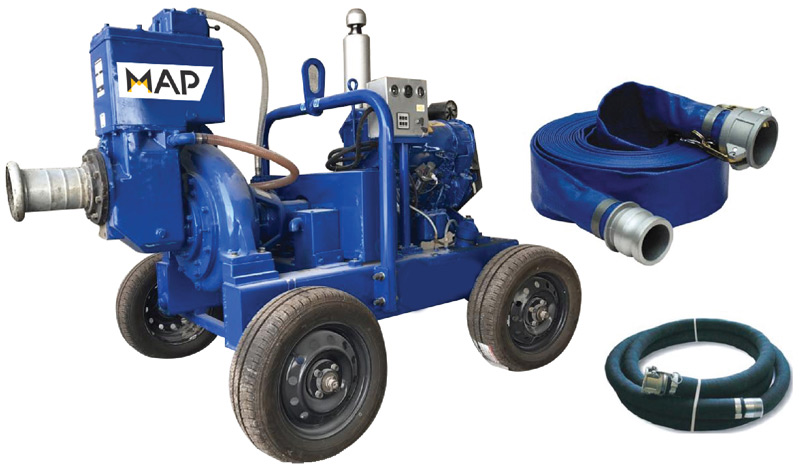

Design : mounted on tank frame chassis (4wheeled), movable at site (4 km/h)
Open impeller, wear plates materials : bronze Vacuum producer pump with alluminium oil lubrication tank.
Automatic priming : Used for pumping waste water, oily water, sewage, sludge and well point dewatering. Pump are hired with suction strainer and hose 7 meters, discharge hose 30-50 meter.
NOTES:
All of our Equipments are well maintained and latest model of the markets.
All the machines are compelled with safety requirements.
